35KHz For Nonwovens Ultrasonic Sewing Machine Price

FOB Reference Price:Get Latest Price
$1,000.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YP-D77
Max. Sewing Speed:
10m/min
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Sewing Thickness:
5mm
Overall Dimensions:
250x200x430 mm
Power:
800w, 800 W
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Free spare parts
Condition:
New
Type:
ultrasonic sewing machine
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FYCG
Stitch Formation:
Lock Stitch
Mechanical Configuration:
Cylinder-Bed
Stitch Length:
5mm
Feed Mechanism:
Manual
Certification:
CE ISO 9001:2008
Frequency:
35 Khz
Product Name:
ultrasonic sewing machine
Welding width:
12mm
wedling speed:
10m/min
overall diamension:
250x200x430 mm
Amplitude:
28um
Usage:
electronicity, PP, PVC
Max. Welding Thickness:
5 mm
Rated Capacity:
5000 pF
Supply Ability
Supply Ability:
50 Set/Sets per Month ultrasonic sewing machine
Packaging & Delivery
Packaging Details
Wooden Case
Port
Shanghai/Hangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

35KHz For Non-wovens Ultrasonic Sewing Machine Price

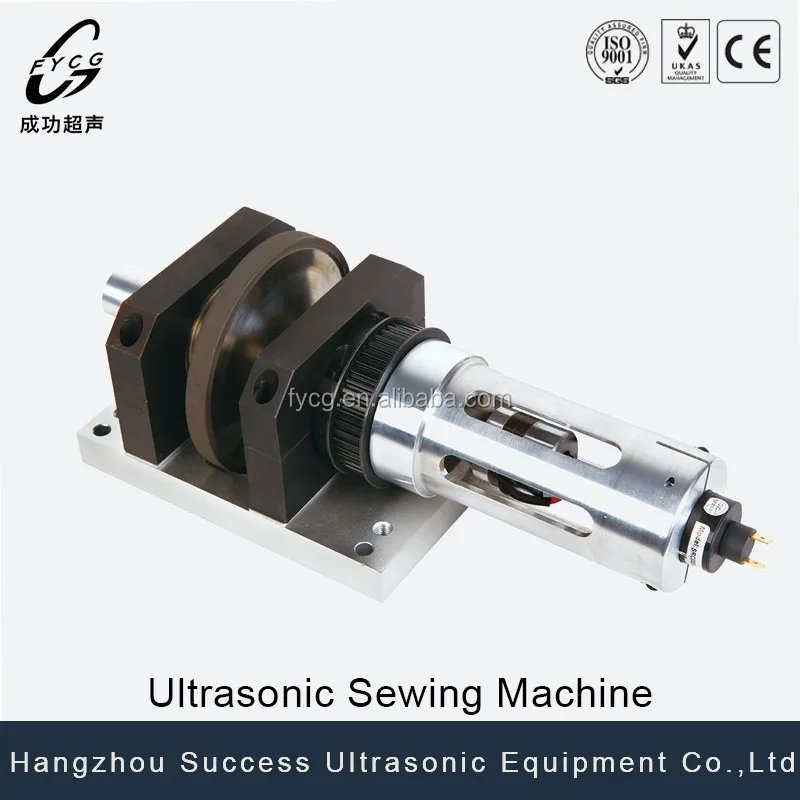

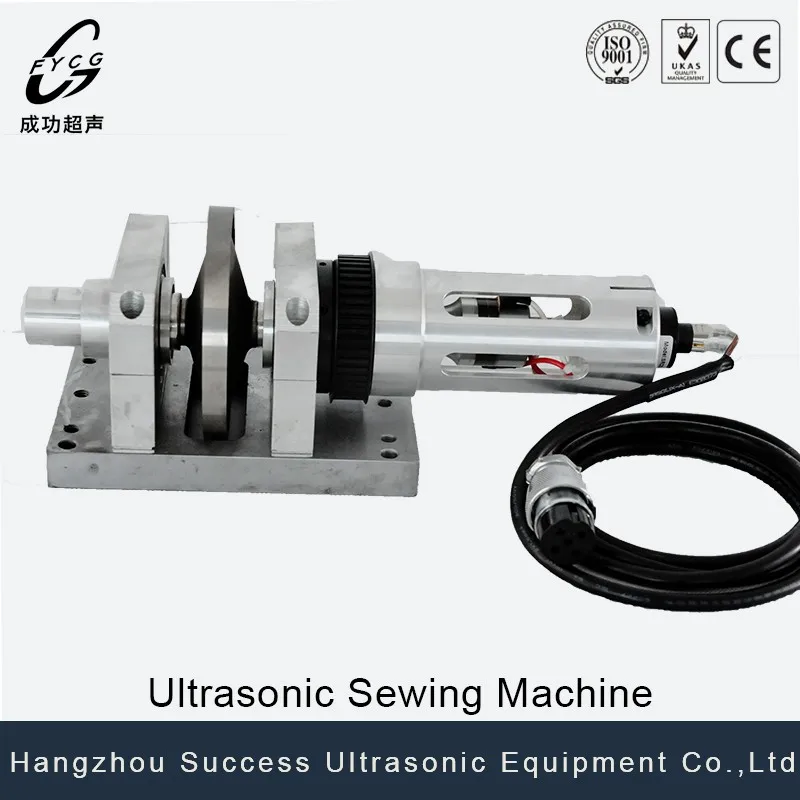

-The Ultrasonic sewing machine is composed of 35K ultrasonic longitudinal vibration transducer, the first section of the horn, the dis type emitter, the second horn and ultrasonic generator. Its working principle is that electric supply converted into high frequency and high AC current by ultrasonic generator, then transport to the transducer.


-One of the functions of the booster is to fix the whole ultrasonic vibration system, and the second is to nlarge the output amplitude of the transducer. The emitter not only enlarges the amplitude, also .converts the transverse strenthing vibration.

Hangzhou Success 35KHz Ultrasonic Sewing Machine

      Handheld ultrasonic welding machines, also known as portable ultrasonic welding machines, handheld ultrasonic welding machines, hand-held welding machine, portable welding machine, ultrasonic spot welding, riveting machines, ultrasonic point welder, can be used for the butt welding of thermoplastics,welding head can also be replaced according to customer demand for riveting, spot welding, embedding, removal process, compared to other traditional crafts (such as adhesive, scald together or screw fastening, etc.), with high production efficiency and welding qualitygood, environmentally friendly and energy-saving advantages.

Detailed Images

Feature

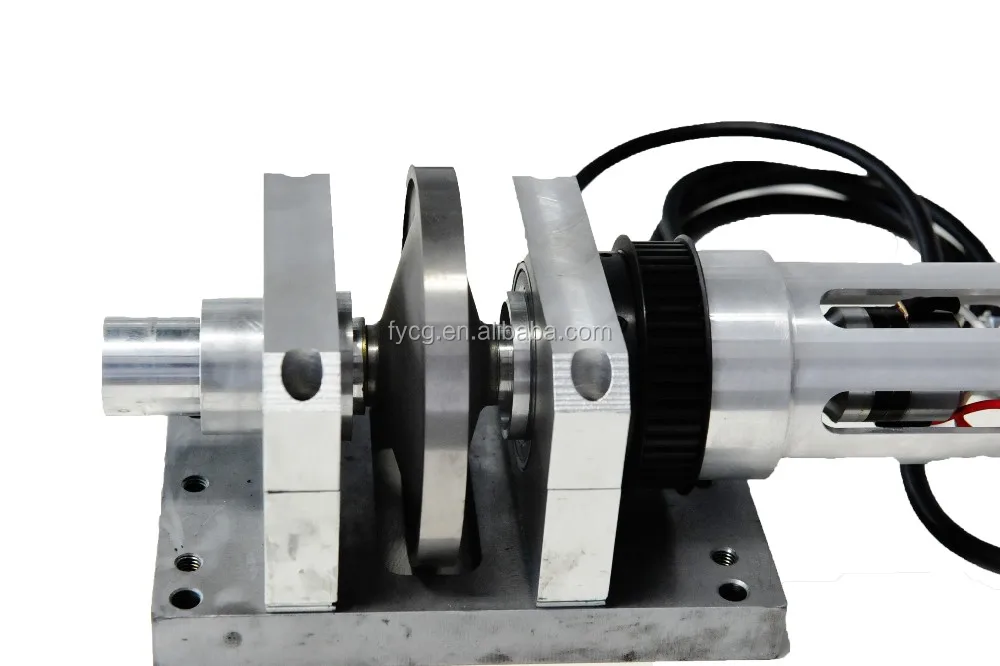

1.The emitter is a disx type, its diameter is 118 mm.
2.The frequency of the transducer is 35Khz, max amplitude 28 μm.
3.The surface hardness of the emitter is HRC 56

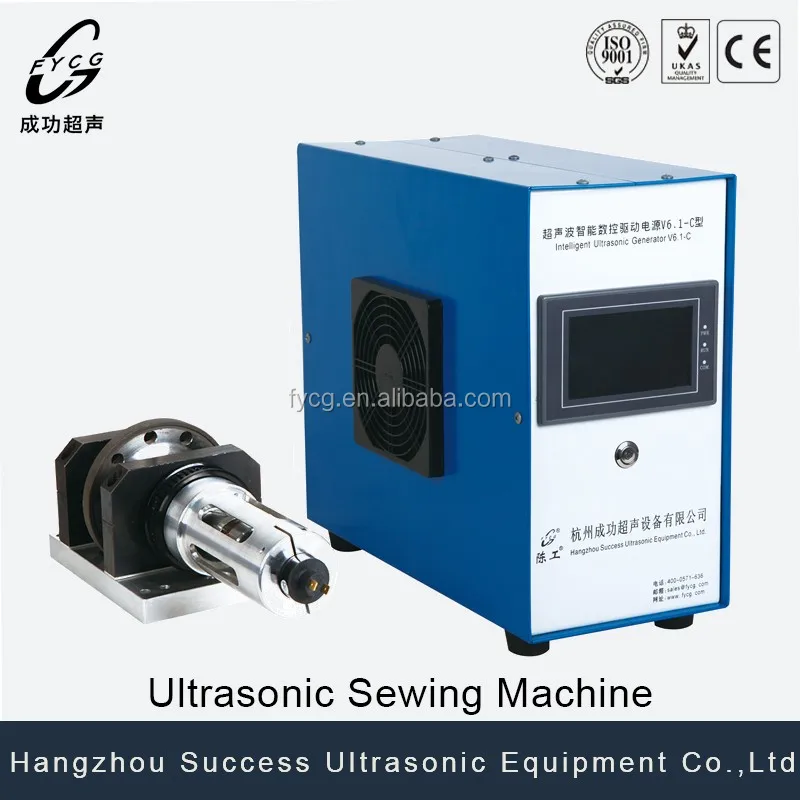

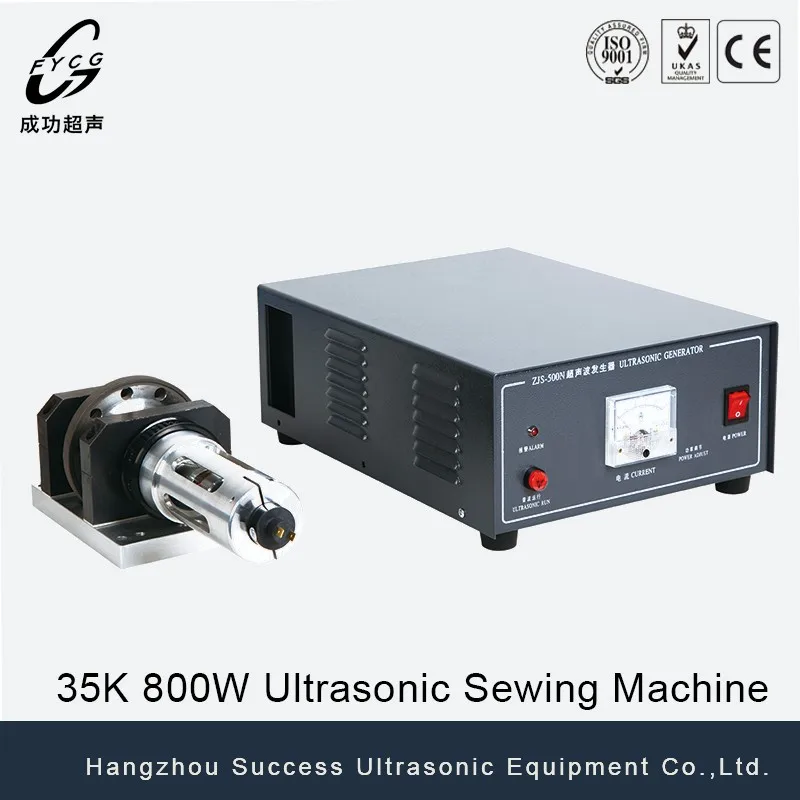

4.Analog Power: Type ZJS-500N; Digital Power: V6.1C

5.Power Supply: 220V 50Hz 10A
6.Max Power: 800W
7.Transducer: YP-3535-2BD, black PZT.
8.Frequency range: Design resonant frequency 35KHz
9.Working Speed: 10 m/min
10.Overall Diamension: 250x200x430 mm.

Our Certifications
Our Company

Our Workshop

  Our Warehouse


Product Show


Service Team


Hangzhou Success Ultrasonic Equipment Co.,Ltd

Founded in 1995, with about 20 Years Experiences, from a small Transuder manufacture develop into a professional ultrasonic equipment manufacturer. we fousced on Design and Development of High Power Ultrasonic Products, FYCG supply ultrasonic core parts and technical support for ultrasonic complete equipment company, developing new style high-power ultrasonic applications. Our suctomers thoughout research institutions, universities, large and small enterprises. We also has a High-power Opening Ultrasonic Laboratory, has enough strength to provide superior solution.

Our Service

Pre-sale Service

High power ultrasonic technology program design

1.strict mechnical processing requirements to ensure every product meet customer's remonds;

2. high automtic assembly processes to to ensure the consistency of parematers for each product

3.good aging test to enusre each product work stable and longer its service life

Humanized User experience

With 30 years design and produce experience

1. opening lab for testing the sample and doing experiment

2. supply ultrasonic conceptual design solution, creating the most value for customers

After-sales Service

1. 1 Year warranty

2. Installation and Debugging

3. Equipment operation training

4. Any problem will be responsed in 24 hours

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample  and it's not free.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:




Contact Us

HANGZHOU SUCCESS ULTRASONIC EQUIPMENT CO.,Ltd

                                     Since 1995

    the professional manufacturer of ultrasonic research, high power ultrasonic trasducer development and production in China. our main products are transducers, ultrasonic generator and application equipment. These products are widely used in plastic welding, rubber cutting, non-woven welding and so on.
      with more than 20 years experience of Transducer Application, advanced production equipment and the full implementation of ISO 9000 quality assurance system, the transducers of our company are in good performace, quality and stablity

Add: No. 16 South Shangsong Road, Yinhu Street, Fuyang District, Hangzhou City, Zhejiang Province, China(mainland)

Contact: Yang Cui


Any questions or requirement pls feel free to contact us, we will reply you within 24 hours.
